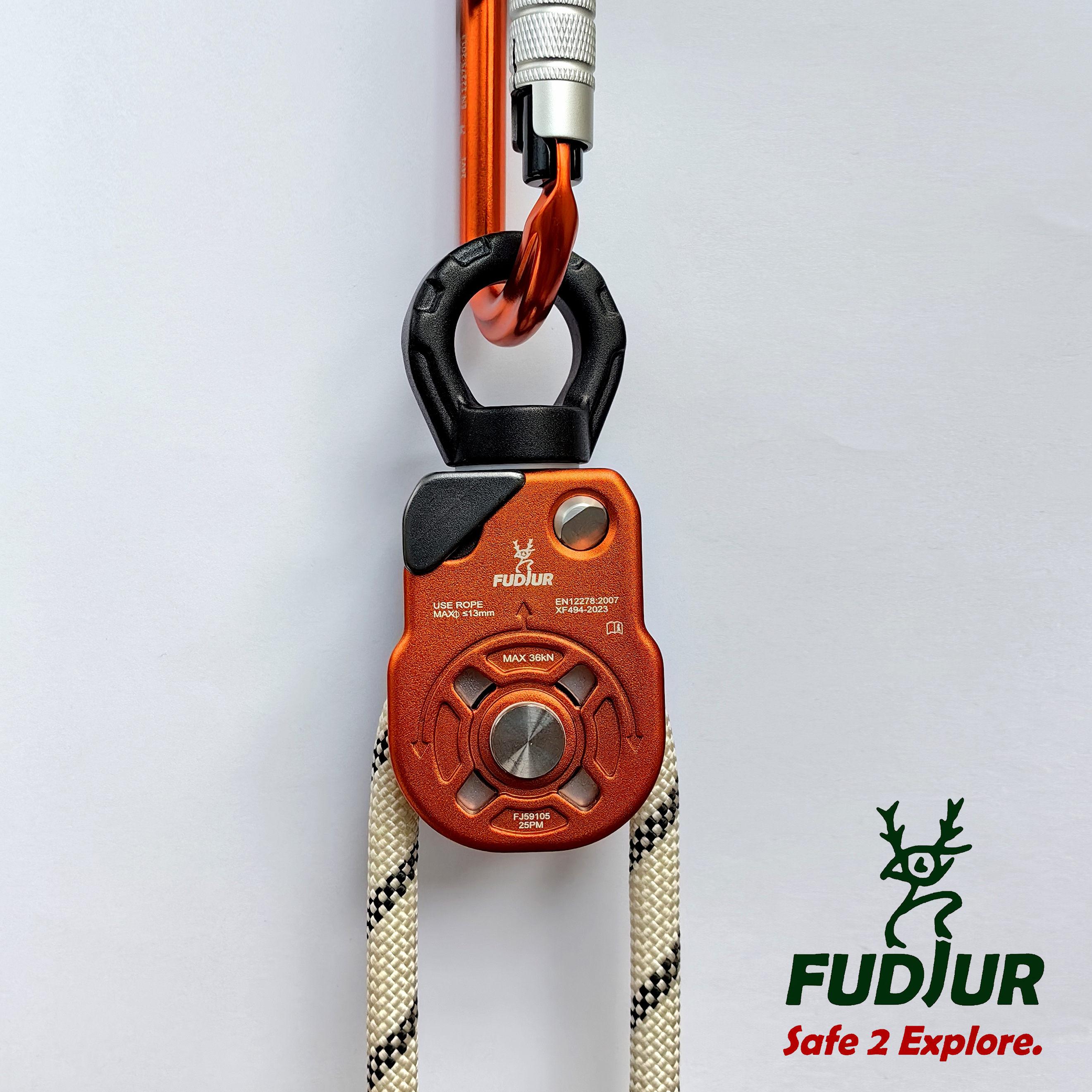

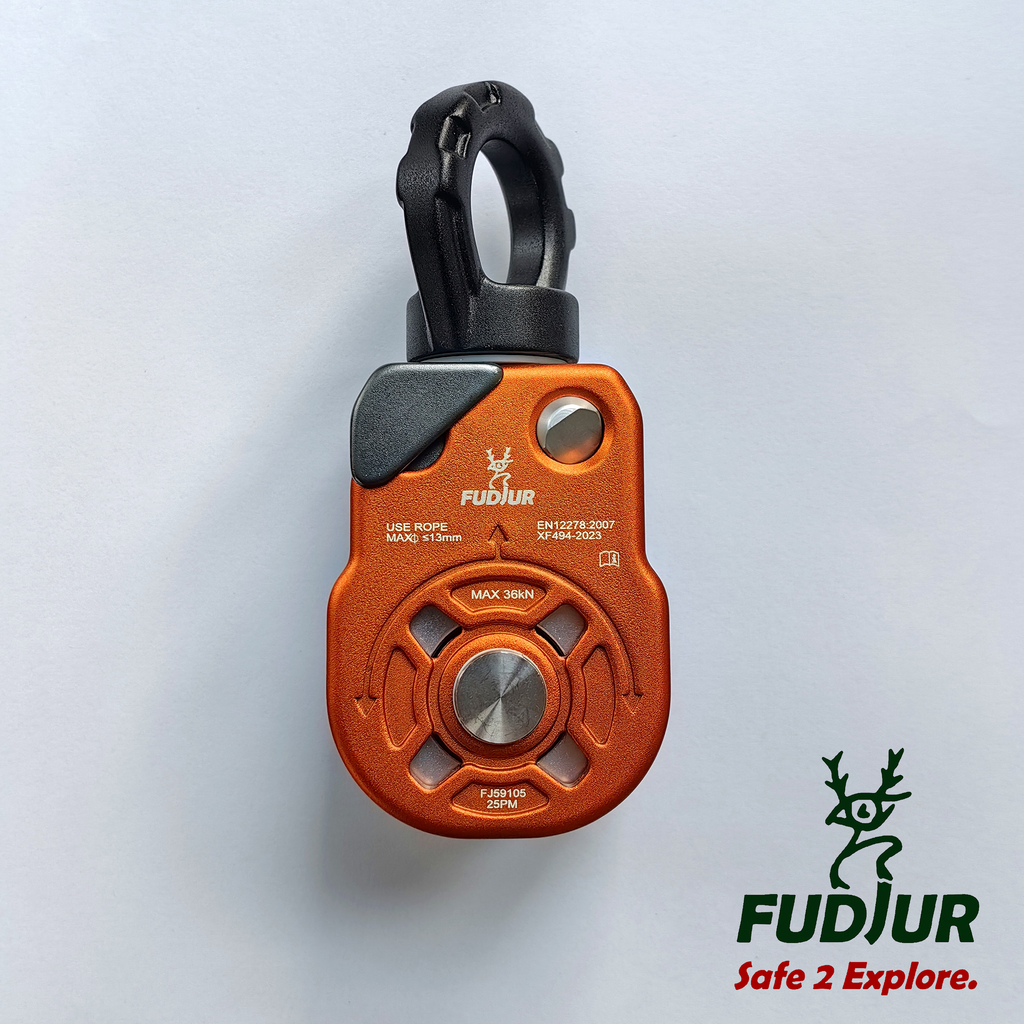

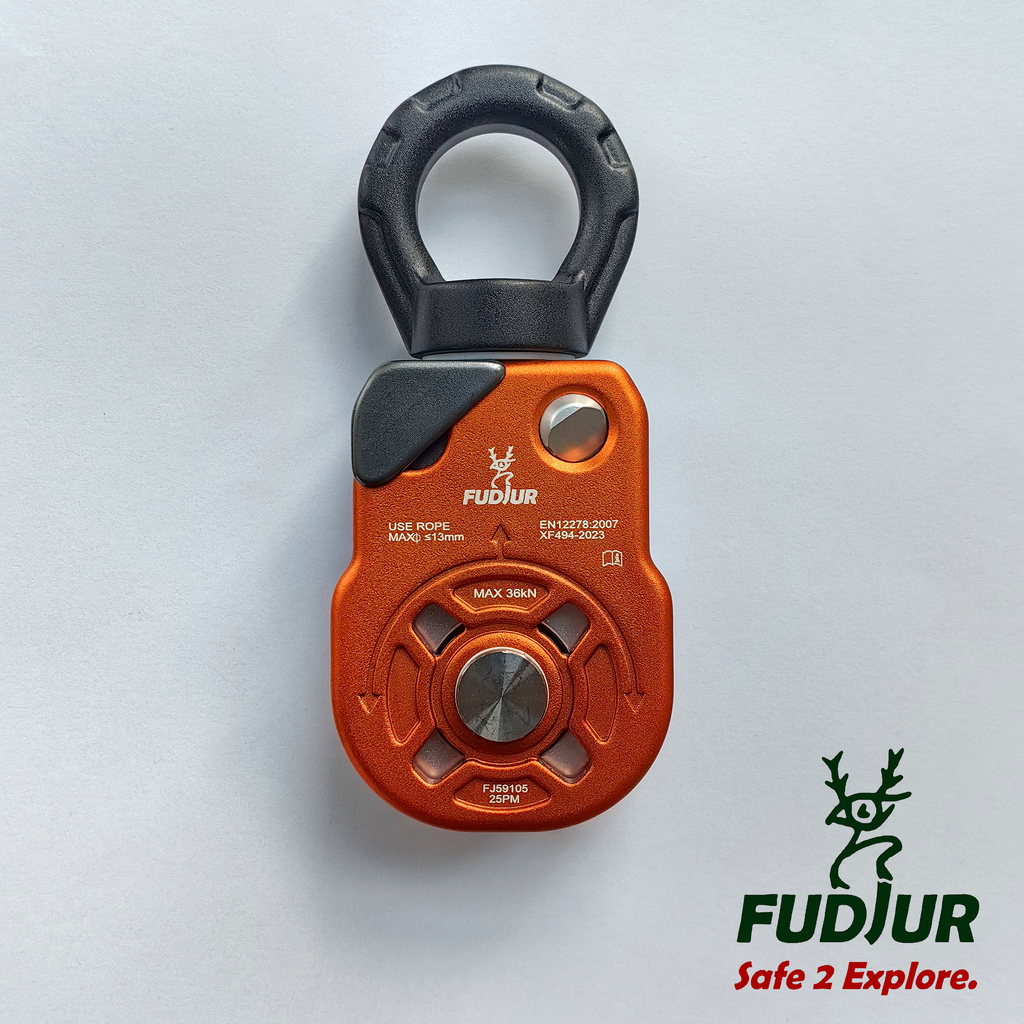

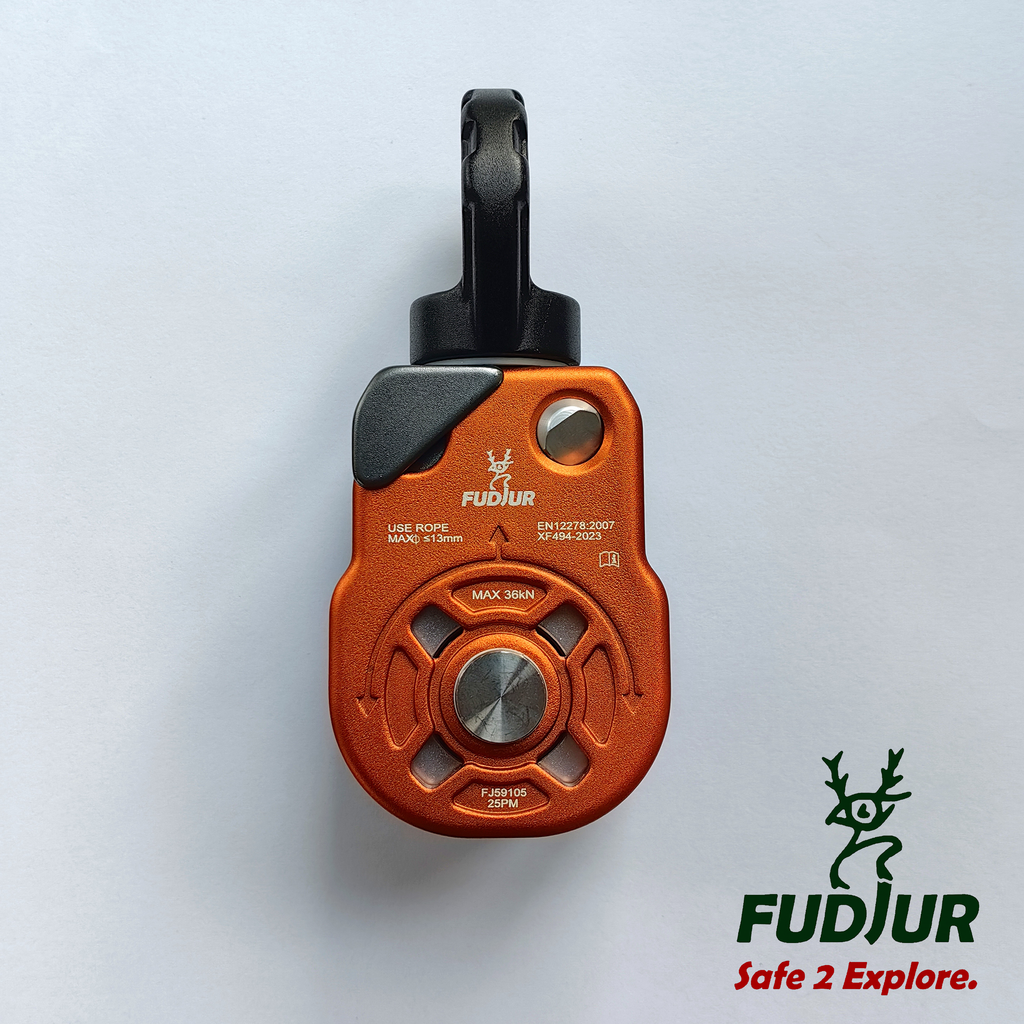

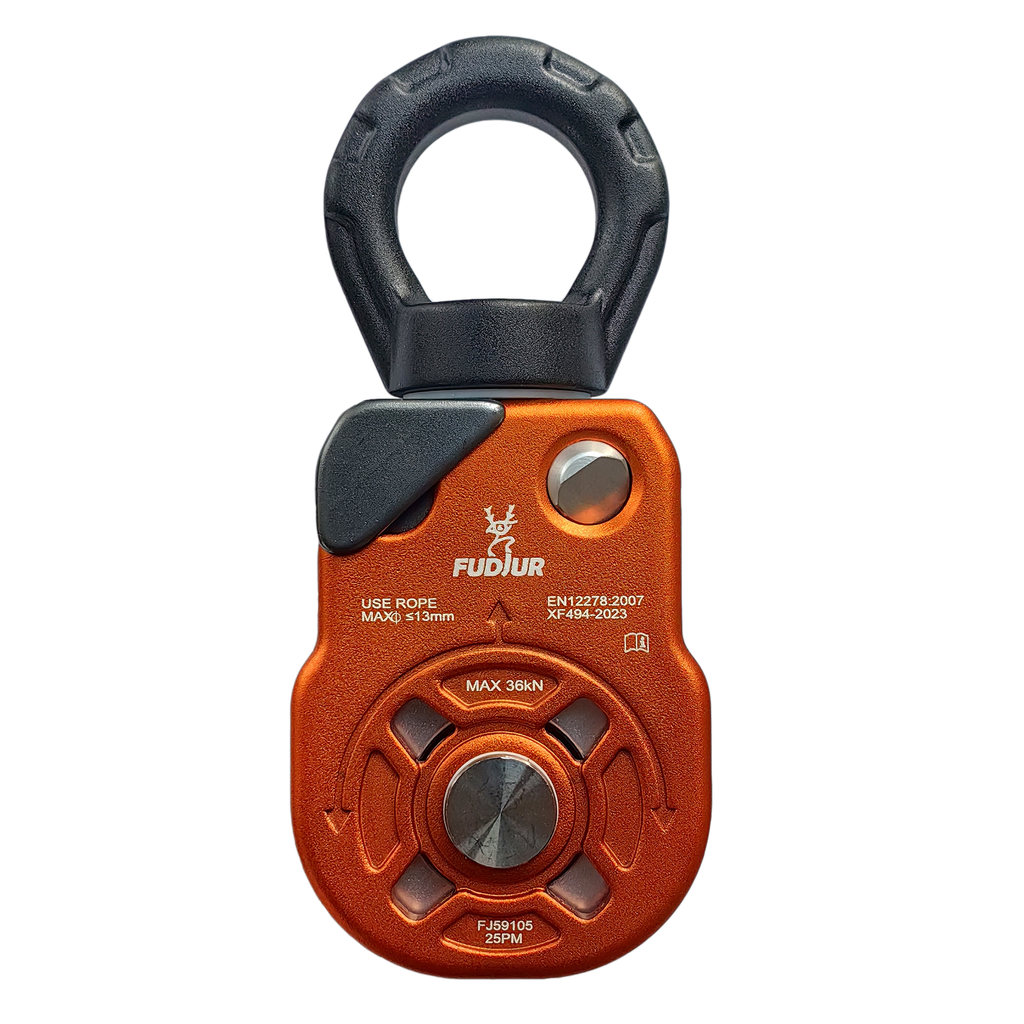

FUDJUR-FJ59105 Openable Side Panel Universal Single Pulley

🌟Core Product Highlights

🔄Universal Rotation, Automatic Alignment
Built-in high-strength universal joint, the pulley body can rotate freely 360°:

Automatic Alignment with Pulling Direction: Regardless of changes in the force angle, the pulley always automatically adjusts its direction.

Effectively Prevents Rope Twisting: Prevents rope twisting and tangling in the system, reducing rope wear.

Improved System Efficiency: The rope always runs at the optimal angle, resulting in smoother transmission.

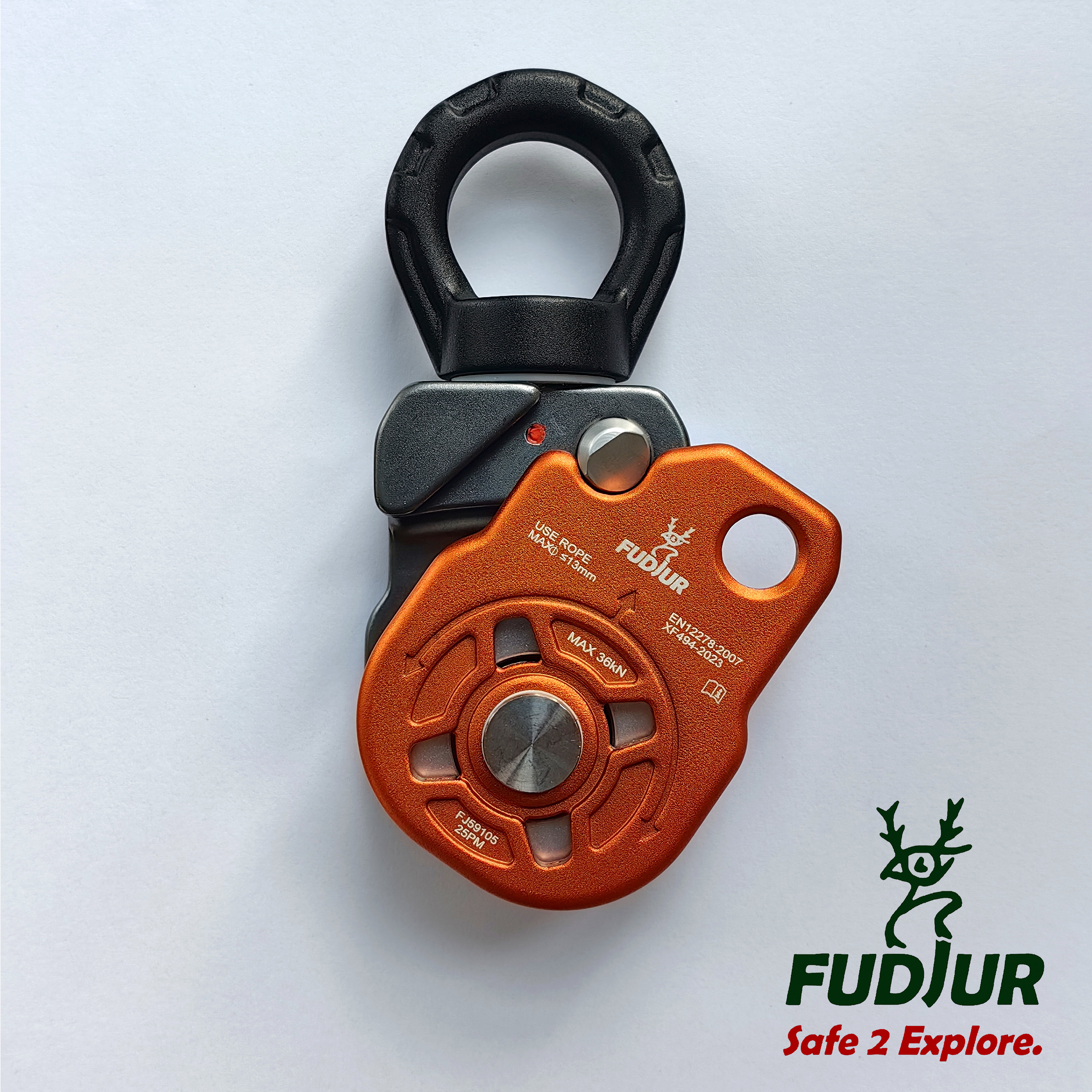

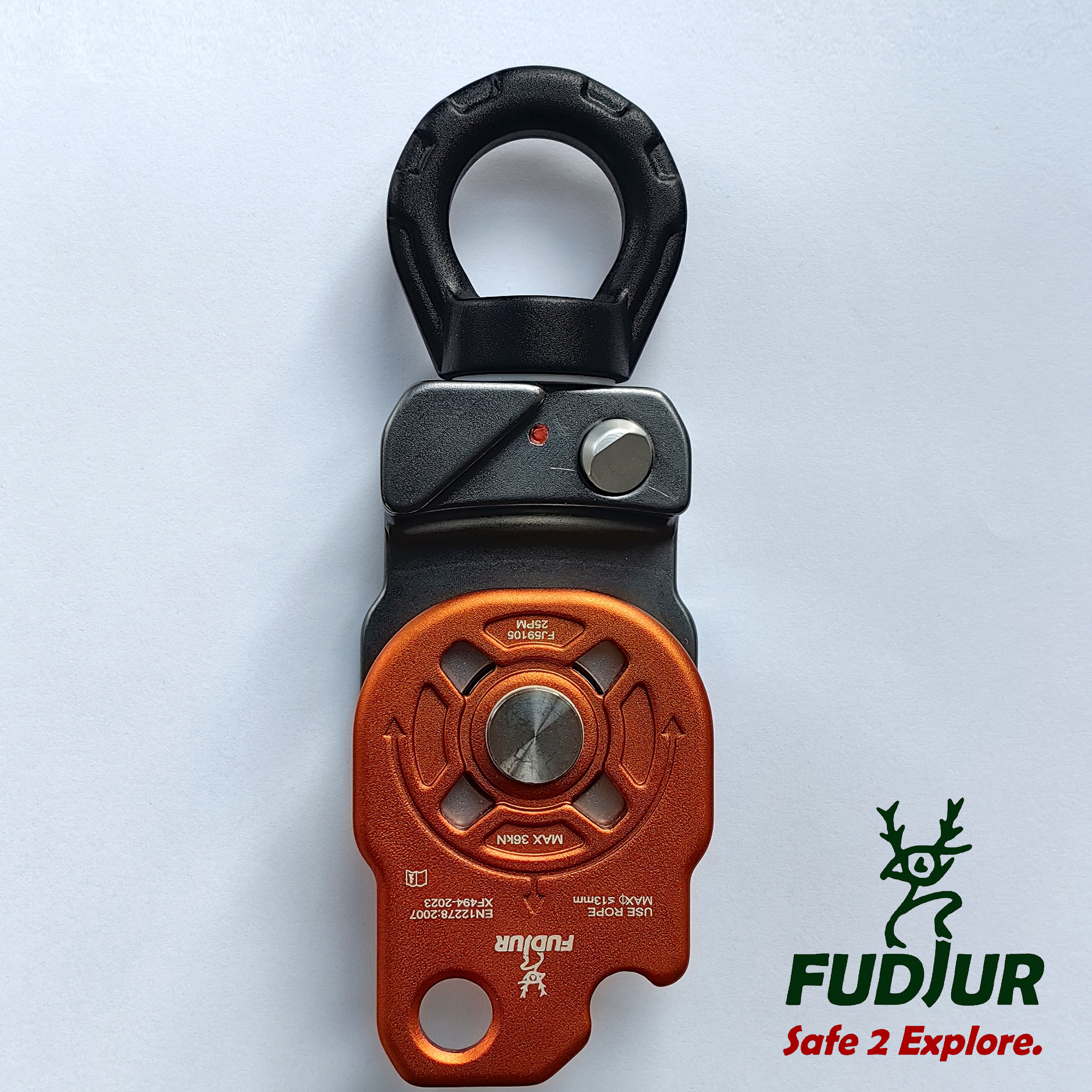

🔓Openable Side Panel, Instant Rope Threading
Innovative side panel opening structure with positioning latches:

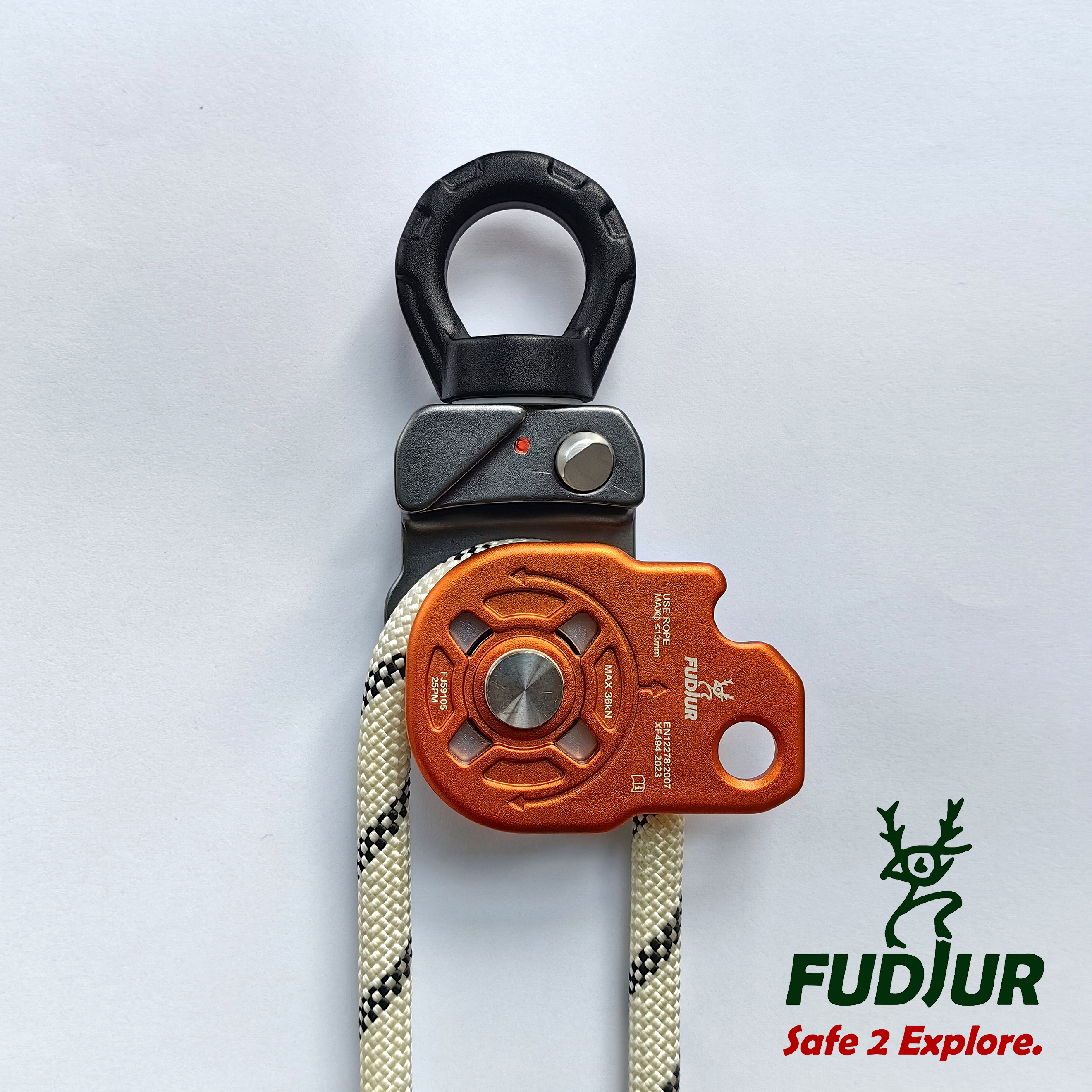

No Need to Remove the Pulley: Ropes can be directly inserted or removed after the side panel is opened.

Convenient High-Altitude Operation: Even in confined spaces or when suspended, rope threading/removal can be completed with one hand.

Positioning Latch Design: The side panel is positioned and fixed after opening, preventing accidental closure. Easy to operate

📜Internationally certified, maximum tensile strength
EN12278:2007 certification: EU pulley equipment standard

XF494-2025 certification: China fire emergency rescue equipment standard

Maximum tensile strength: 36kN (approximately 3.6 tons), far exceeding the needs of high-altitude operations and rescue

Applicable rope diameter: ≤13mm, covering mainstream rope specifications

✈️Aerospace-grade material, lightweight and high strength
Main body material: 7075 aerospace-grade aluminum alloy, fully CNC precision machined, high strength and lightweight

Spindle and pulley: Stainless steel bearings, smooth rotation, wear-resistant and corrosion-resistant

Total weight: Only 328g, a lightweight design among universal pulleys of the same level

📐Compact size, easy to carry
Dimensions: 13.5 × 6 × 5.7 cm, compact and easy to store.

One-handed grip: Convenient for one-handed operation during high-altitude work.

Batch traceability: Production batch 25PM, quality traceable.

📐Product Parameters
Name: Openable Side Panel Universal Single Pulley

Model: FJ59105

Dimensions: 13.5 × 6 × 5.7 cm

Material: 7075 Aluminum Alloy + Stainless Steel

Weight: Main body 328g

Ultimate Tensile Strength: 36kN

Applicable Rope Diameter: ≤13mm

Certification Standard: EN12278:2007 / XF494-2025

Special Features: Universal rotation / Openable side panel with positioning latch

Production Batch: 25PM

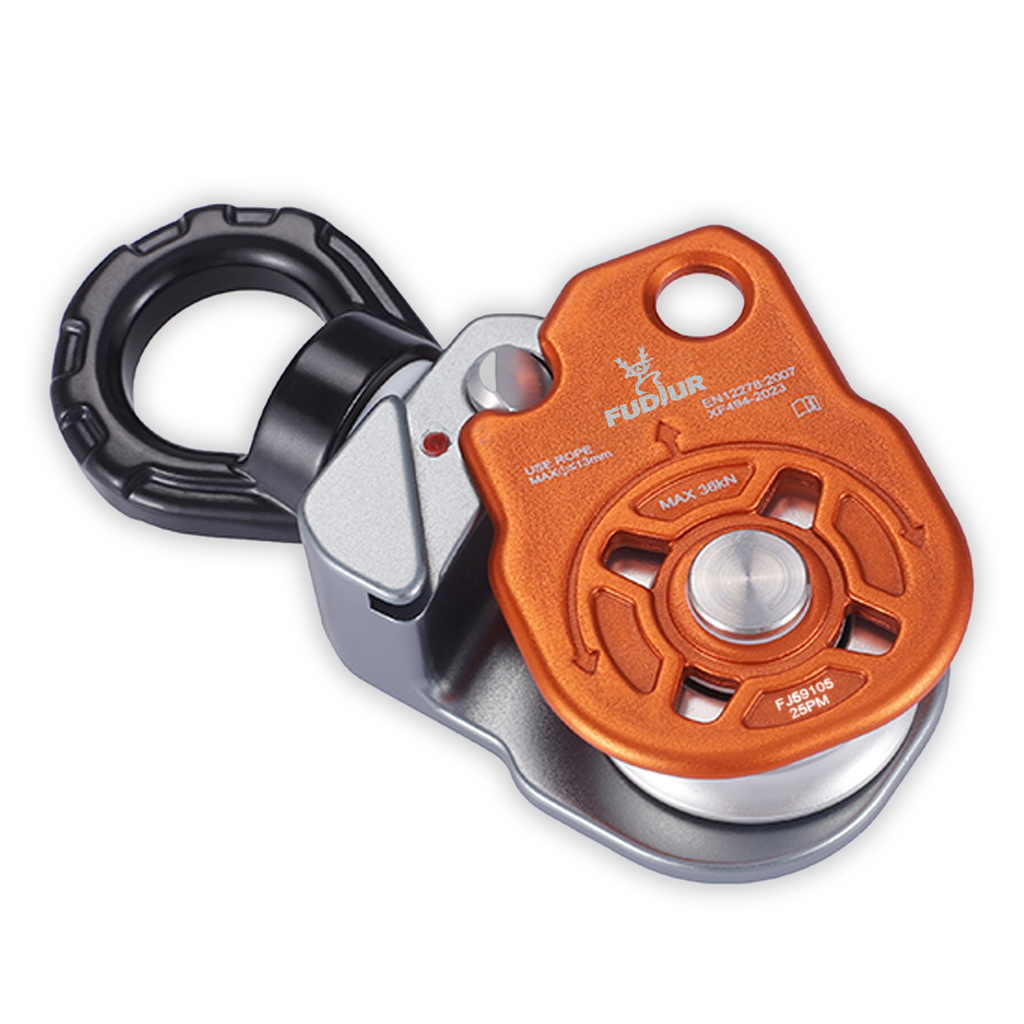

🛠️Product Structure Diagram

Components | Function

7075 Aluminum Alloy Main Body | Lightweight and high strength, CNC precision machining

Universal Joint | 360° free rotation, prevents rope tangling

Openable Side Panel With positioning latches, rope can be threaded without disassembling the pulley.

Stainless steel pulleys: Smooth, low resistance, wear-resistant and corrosion-resistant.

Force-bearing holes: Connect to the main lock or anchor point.

Certification markings: EN12278 / XF494 / 36kN clearly marked.

🎯Applicable Scenarios

Scenario | Application Advantages

Rope Rescue | Universal joint adapts to complex force angles; side panel can be opened for easy rope threading mid-journey.

High-Altitude Operations | Lightweight design reduces load; convenient one-handed operation.

Industrial Lifting | 36kN high tensile strength meets heavy lifting needs.

Cavite Exploration/Rock Climbing | Compact and portable; universal anti-tangle rope.

Pulley System | Can be used as a deflector or movable pulley.

🔄Universal Single Pulley vs. Ordinary Single Pulley

Comparison Item: FUDJUR FJ59105 | Ordinary Single Pulley

Rotation Function: 360° universal rotation | Fixed direction.

Risk of Rope Tangle: Extremely low, automatic alignment | Higher, requires manual adjustment.

Side Panel Opening: Side panel can be opened + positioning latches. Normally not openable.
Rope threading method: No need to remove the wheel, directly open the side panel. Requires rope threading or wheel removal.

Certification standards: EN12278 / XF494 dual certification. Usually no certification or single certification.

Weight: 328g (lightweight). Usually 350g+.

🧰Typical application systems:

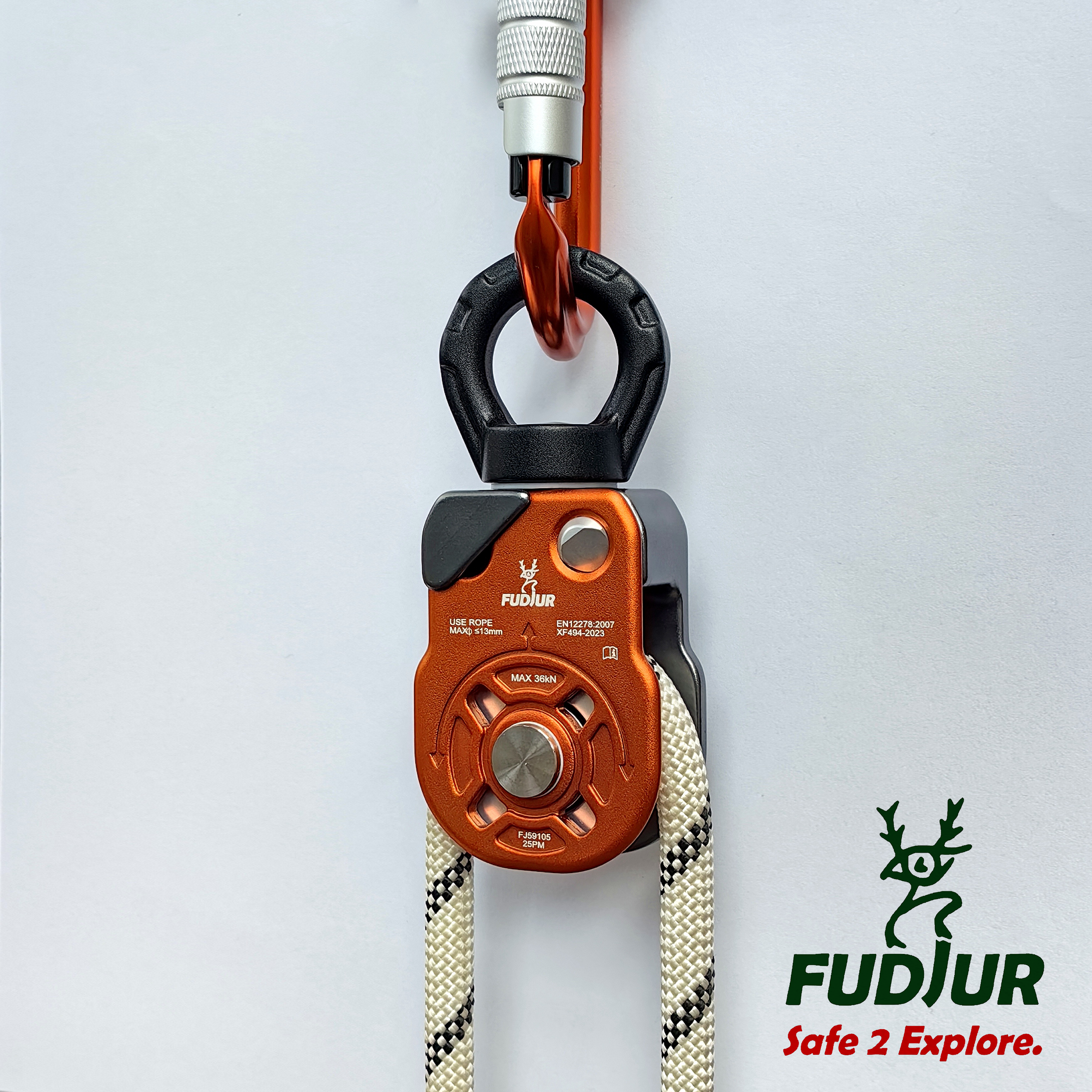

1️⃣ Basic redirection system: Pulley fixed to the anchor point.

Universal joint automatically aligns with the direction of tension.

Rope changes direction, reducing friction.

2️⃣ Effort-saving pulley block: Used as a movable pulley to build a 2:1 or 3:1 effort-saving system.

Openable side panel for easy rope adjustment midway.

3️⃣ Temporary anchor point for high-altitude operations: Universal joint adapts to the worker's movement direction.

Openable side panel allows for easy rope replacement.

4️⃣ Rescue lifting system: 36kN high tensile strength, suitable for lifting heavy objects or injured persons.

Universal joint prevents rope entanglement in complex terrain.

🎯Suitable users:
Suitable users and application scenarios:
Rope rescue team members. Mountain rescue, urban search and rescue, deep well rescue
High-altitude operations personnel, exterior wall cleaning, curtain wall installation, wind power maintenance
Industrial lifting personnel, heavy object lifting, equipment installation
Cavite/rock climbing enthusiasts, equipment transportation in complex terrain
Rope technology training instructors, pulley system teaching demonstrations

⚠️Usage Tips
Compatible Ropes: Only applicable to ropes with a diameter ≤13mm. Do not exceed the limit.

Side Panel Operation: Ensure the positioning latch is in place when opening the side panel to prevent accidental closure.

Direction Confirmation: Check the universal joint for flexible rotation before use.

Regular Inspection: Check the pulley bearings for abnormal noise and the main body for deformation before each use.

Load Limit: Ultimate tensile force 36kN. Do not overload.

Professional Training: Please receive professional rope and pulley system training before use.

✨Conclusion
FUDJUR FJ59105 Openable Side Panel Universal Single Pulley
Universal anti-winding, convenient side panel.

Dual certification, 36kN ultimate tensile force.

Safe 2 Explore helps you build safer and more efficient rope systems.
